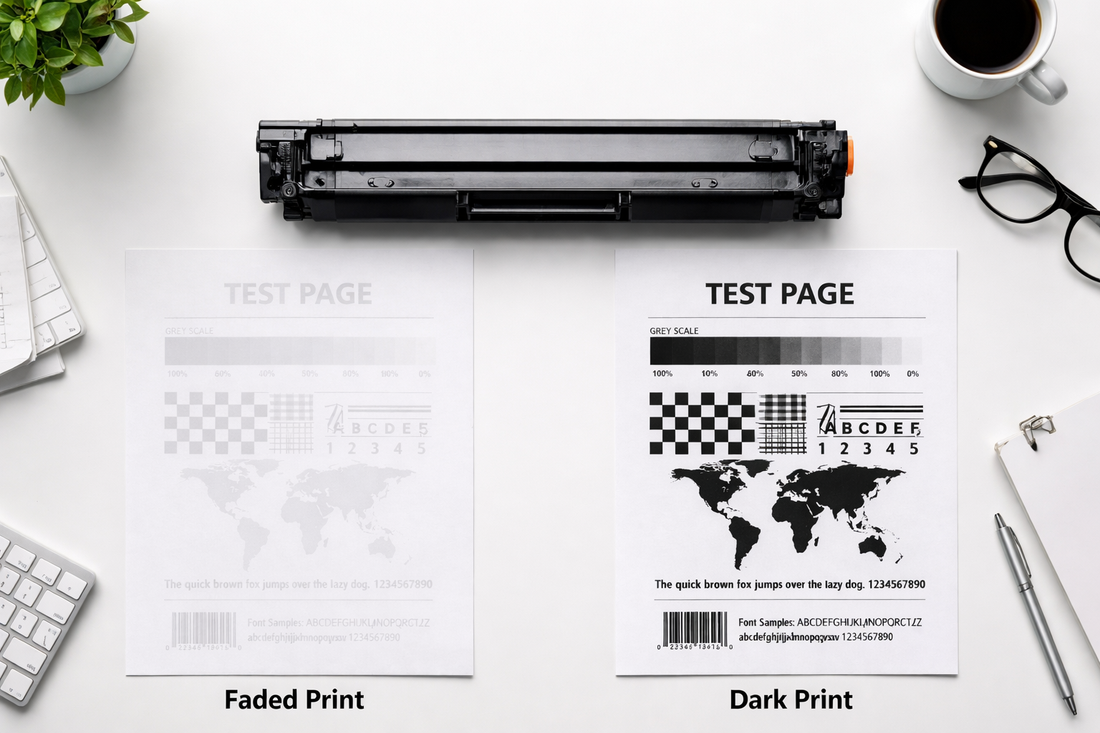

HP M1005 Faded Prints - Is It the Toner or the Drum?
Your HP LaserJet M1005 MFP was printing perfectly last week. Now every page comes out faded, light, or washed out. You shake the cartridge, it gets a little better for a few prints, then goes back to faded.
Sound familiar?
This is the single most common complaint we hear from M1005 users. The good news - it's almost always fixable with a simple part replacement. The tricky part is figuring out which part is causing it.
Let's break it down.
The 3 Parts That Control Print Darkness
The HP M1005 uses three key components to put toner on paper:
1. Toner Cartridge (HP 12A / Q2612A) - holds the toner powder
2. OPC Drum - sits inside the toner cartridge, transfers toner to paper
3. Formatter Board - processes the print data from your computer
When prints come out faded, one of these three is failing. Here's how to figure out which one.
Step 1: Shake the Cartridge
Remove the toner cartridge, hold it horizontally, and rock it gently side to side 5-6 times. This redistributes the remaining toner powder inside.
Put it back in and print a test page.
If the print comes back dark - your toner is running low. You'll need a replacement soon but you can get a few more days out of it.
If the print is still faded - the toner level isn't the problem. Move to Step 2.
Step 2: Check the OPC Drum
The OPC drum is the green or blue cylinder inside your toner cartridge. It's the most sensitive part of the entire printer - it wears out over time and is easily damaged by light exposure.
Remove the cartridge and look at the drum surface. You're checking for:
- Scratches or lines running along the drum
- Shiny worn patches (the coating has rubbed off)
- White or grey spots on the drum surface
- Any physical damage or chips
If you see any of these, the drum is worn out. In the HP 12A cartridge, the drum is built into the cartridge - so replacing the toner cartridge gives you a fresh drum automatically.
But here's what most people don't know: if you're using a refilled cartridge, the drum has NOT been replaced. It's the same old drum with new toner powder dumped in. This is the number one reason refilled cartridges give faded prints even when they're "full."
A new PRM compatible HP 12A cartridge comes with a brand new OPC drum every time - not just new toner.
Step 3: The Formatter Board Test
If you've put in a brand new toner cartridge and prints are still faded or coming out blank, the problem isn't the toner or drum at all - it's the formatter board.
The formatter board is the printer's main logic board. It processes the print data sent from your computer. When it starts failing, common symptoms include:
- Faded or light prints even with a new cartridge
- Completely blank pages
- Printer detected by computer but won't print
- Random lines or garbled text on printouts
- Printer freezes mid-job
The formatter board is often overlooked because people assume faded prints = toner problem. But if you've already tried 2-3 different cartridges and the problem persists, the formatter is almost certainly the cause.
Quick Diagnosis Chart
Symptom → Most Likely Cause
Faded prints, improves after shaking → Toner running low - replace cartridge
Faded prints with lines or streaks → Worn OPC drum - replace cartridge (not refill)
Faded prints with new cartridge (refilled) → Old drum inside refilled cartridge - switch to new compatible cartridge
Faded prints with brand new cartridge → Formatter board failure - replace formatter
Blank pages, printer detects but won't print → Formatter board failure
Prints fine sometimes, faded other times → Intermittent formatter board failure
Why Refilled Cartridges Cause This Problem
Let's be direct about this because it affects most M1005 users in India.
When you refill a cartridge, the shop opens your old cartridge, dumps in new toner powder, and seals it back up. The OPC drum - which is the part that actually creates the image on paper - is not replaced. It's the same drum that has already printed thousands of pages.
A worn drum cannot hold a proper electrical charge, which means it cannot transfer toner to paper properly. Result: faded prints, even though the cartridge is "full" of toner.
This is why many people think compatible cartridges give bad print quality. They're actually using refilled cartridges with worn drums, not new compatible cartridges.
A new PRM compatible cartridge is factory-manufactured with all new components — new toner, new drum, new wiper blade, new mag roller. That's the difference.
What Should You Buy?
If your M1005 is printing faded, here's the simplest path:
Start with a new toner cartridge. This fixes the problem 80% of the time because you get a fresh drum along with fresh toner.
→ HP 12A Compatible Toner Cartridge — Rs. 350 (https://prmprinterparts.com/products/prm-q2612a-12a-toner-cartridge)
→ HP 12A High Yield Toner Cartridge — Rs. 400, gives 2500 pages instead of 2000 (https://prmprinterparts.com/products/prm-12x-q2612x-toner-cartridge)
If you're using a refilled cartridge and don't want to buy a new one, you can replace just the drum:
→ HP 12A OPC Drum (A&G Original) (https://prmprinterparts.com/products/green-opc-drum-for-hp-12a-toner-cartridge-a-g-original)
If a new cartridge and drum don't fix it, replace the formatter board.
→ HP M1005 Original Formatter Board (CB397-60001) (https://prmprinterparts.com/products/original-formatter-board-for-hp-laserjet-m1005-cb397-60001)
Still have questions? WhatsApp us on 9004403030 — we'll help you diagnose the exact problem before you buy anything.
